Bangladesh Shot Blasting Machine And Band Saw Machine Project

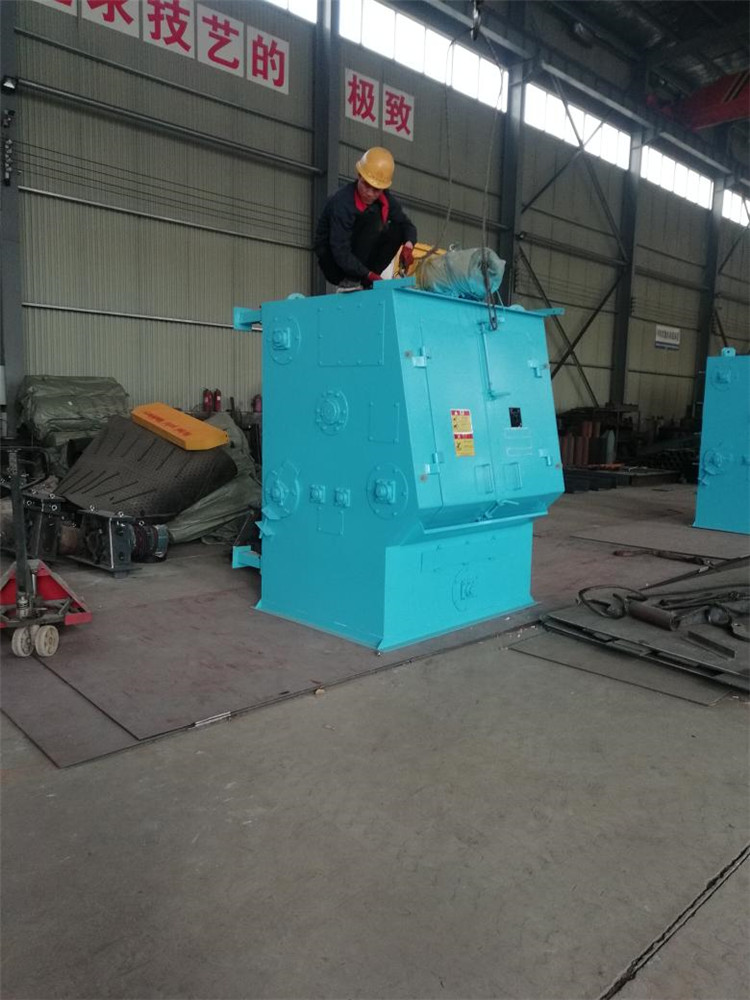

Q3210 Crawler type shot blasting machine Crawler type shot blasting machine

No.	Item	Qty	Parameters
1	Clean workpiece	1	Unit weight not heavy than 30kg
2	Cleaning standard		GB8923-88  A-B  Sa2   1/2 standard
3	Blasting head/impeller head	2	Model：Q034zz Blasting quantity: 250kg/min Shot speed：≥7.5m/s Power：15kw
4	SHOT/PILL		Ф0.15~2.5
5	Required shot/pill first time		0.2t
6	Elevator		Lifting capacity：15t/h Power：1.5kw
7	Spiral conveyor	1	Delivery value：15t/h Power：1.5kw
8	Segregator	1	Separating capacity：15t Separating are wind speed：4~5m/s Qualified pill/shot content in waste：≤1%
9	Dust remover	1	Fan：340m3/h Power：4kw
10	Total power		About 13kw

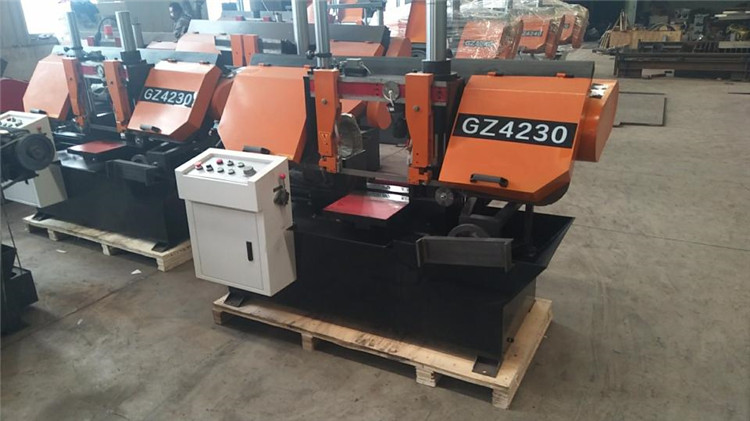

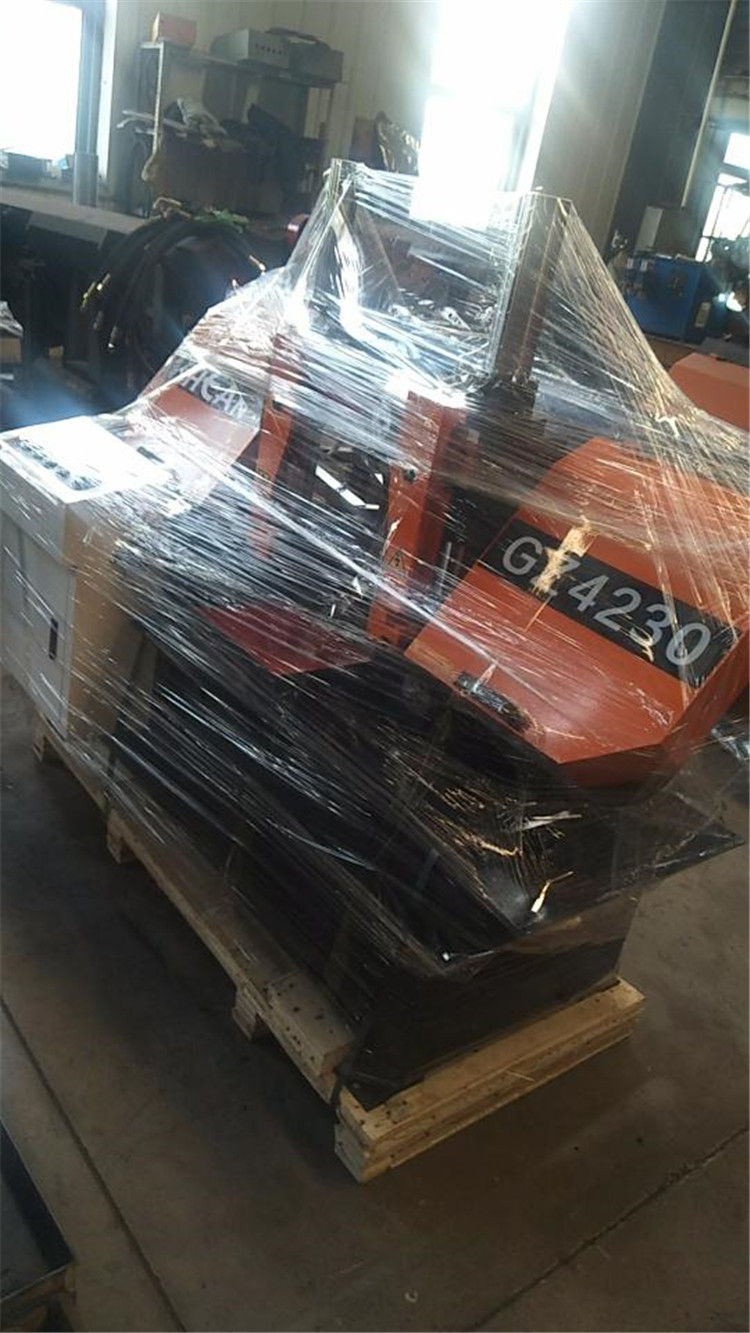

GZ4230 Band Saw Machine

GZ4230

Cut capacity                                       W*H (mm) round 300                                                                            square 300*300 Bundle cutting                                    W*H (mm) Max.200*90                                                                            Min.100*20 Saw belt size(mm)                             3620*27*0.9 Selt line speed(m/min)                       40/60/80 Main generator power(kw)                 3 Hydraulic generator power(kw)          0.75 Cooling generator power (kw)            0.04 Working clamp style                           Hydraulic Saw belt tighten style                         Hand Main trasmit structure                         Turbine Loading style                                      Extra roller Packing dimensions(mm)                    L*M*H 1750*2200*1450 Weights of machine (kgs)                    700kgs
