Detailed parameters of Φ610x25mm Induction Bending Machine
Suitable environment for pipe bending machine: Temperature 5-45℃,Input distribution power 420KVA,reversely humidity≤80%, input voltage is 380V three phase four line( -10% — +15%), Frequency 50Hz±2%, working time 8-24 hours/day, No corrosive media, enough running space without wind and rain.

Model

SH-610 (PLC automatic control)

Bending capacity

mm

Φ168,Φ219,Φ273,Φ323,Φ355,Φ406,Φ457,Φ508,Φ558,Φ610

Bending material

(1) carbon steel seamless pipe:20G, A106B, A106C etc.

(2)The straight welding pipe: Q235B, 345B, X42, X52, X60, X70 and other materials;

(3) Alloy steel:335P12, P22, P91, 12Cr1MoVG, WB36, etc.

Bending shapes

Round, Square, rectangle, channel steel, H-steel, T-steel, etc.

Bending radius

mm/D

2.5D≤ R≤6D

Bending angle

Degree

0-90°

Bending angle tolerance

Degree

±0.5°

Bending radius tolerance

mm

≤20

Anticipated reduction in wall thickness(from actual starting thickness)

≤10%

Max bending pipe length

mm

12000

Available moving distance of main cylinders

mm

6000mm

Bending speed

mm/minute

0-140mm/min

Pushing force

T

125TON

Machine dimension

Meter

L 15 xW5xH2.5

Running space required

Meter

L20xW8xH2.5

Machine Weight

T

Approx.50 Ton

Q1280 beveling machine
GZ4280 bandsaw machine

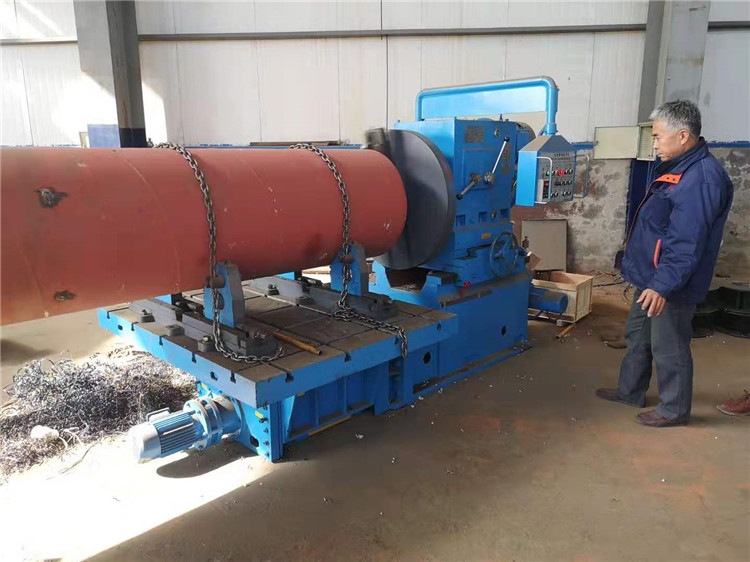

The Detailed parameters of Beveling machine Q1280
ITEM	Name	Parameters
1	Motor power	7.5KW,n=960rpm
2	cutter speed	n=31~161rpm
3	Knife bracket difference forward speed	0,0.1,0.25 mm/r
4	Processing range od of pipe	Φ159mm--Φ800mm
5	Processing range bevel thickness	10~150mm
6	Bevel type	single V, double V, U, etc.
7	Angle adjust of cutter supporter	0-35°
8	Differential feeding speed	0.17mm/r
9	Frequency control axial movement speed	50~400mm/r
10	Electric rapid retracting speed	175mm/min, manual adjustment 0.18mm/r
11	Axial movement	300mm
112	Effective movement	285mm
13	Clamping Type	Hydraulic Clamping Working pressure 4~6 kPa Maximum lifting force 100 KN
14	Knife wheel diameter	850mm
15	The Machine center Height	1140mm
16	The weight of machine	5000 kgs

The Detailed parameters of Band Saw Machine GZ4280
Cutting Capacity:	Round:φ800mm
Cutting Capacity:	Rectangular:800 X 800 mm
Blade Size (Length/Width/Thickness):	8800×67×1.6 mm
Blade linear speed(m/min):	15 - 80,inverter
Power Requirement	380V,50HZ or customized
Main Motor	11.00KW
Hydraulic motor	1.50KW
Coolant Pump Motor	0.12KW
Working clamp	Hydraulic
Blade extension	Hydraulically semi auto
Vise action Method	Clamping vise, hydraulic
Blade Guide:	Carbide / Roller
Blade Cleaning	Chip brush
Blade extension	Hydraulically semi auto
Sawing feed control	Push button to control sawing feed hydraulically Speed stepless adjuster
Weight Approx.	8000kg

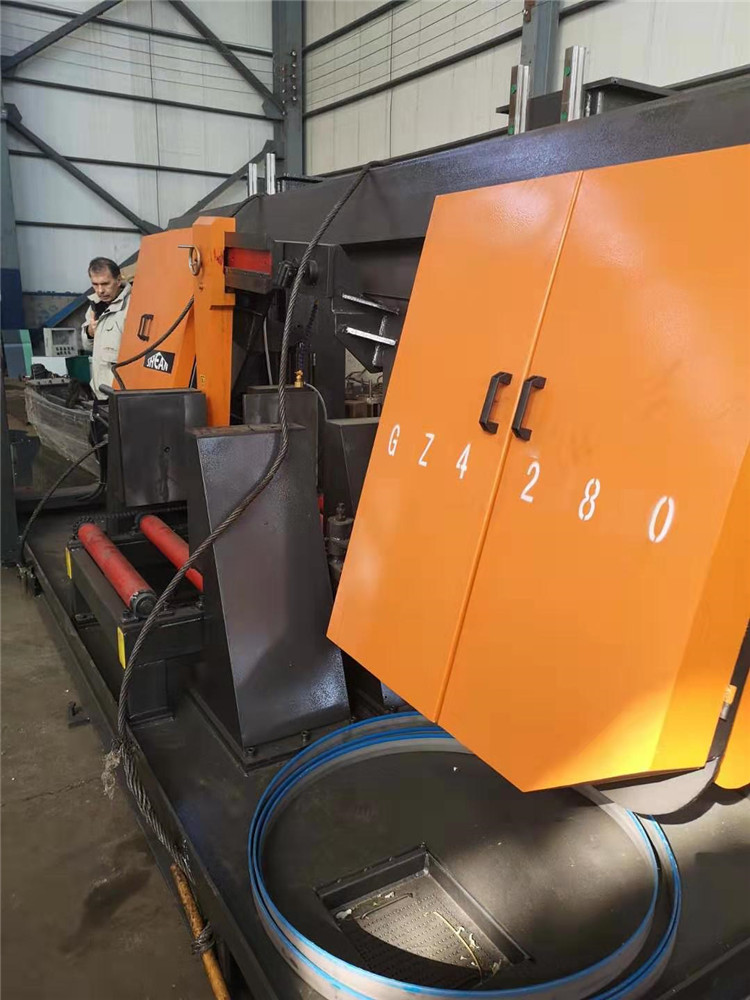

GZ4280 BAND SAW MACHINE-bending-machine-beveling-machine-band-saw-machine-delivery (5).jpg

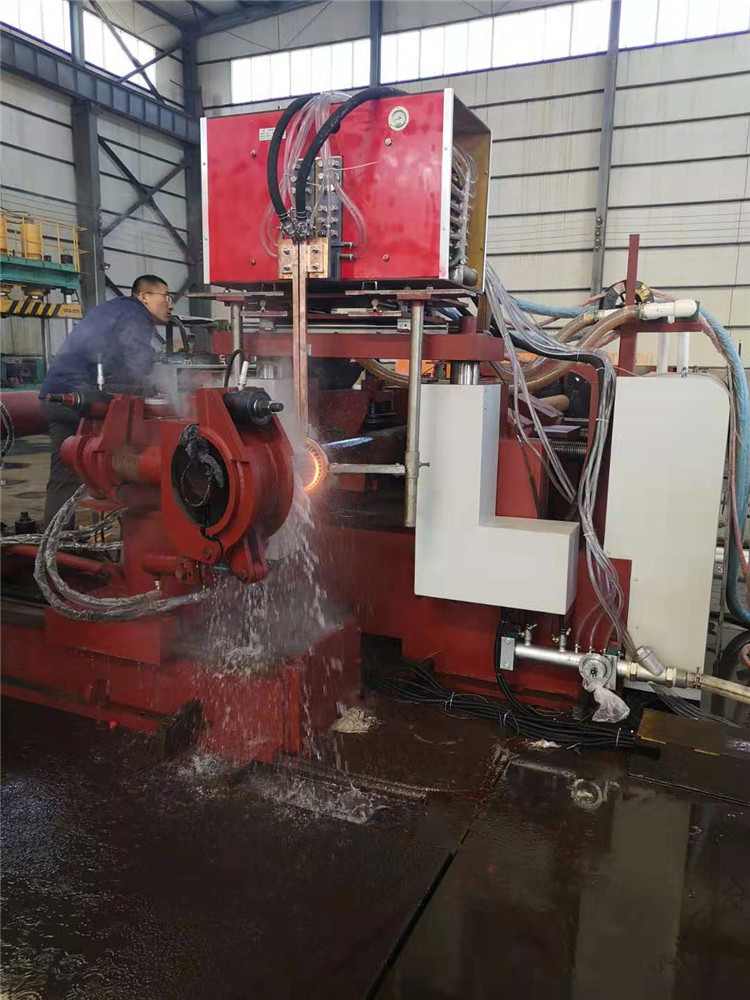

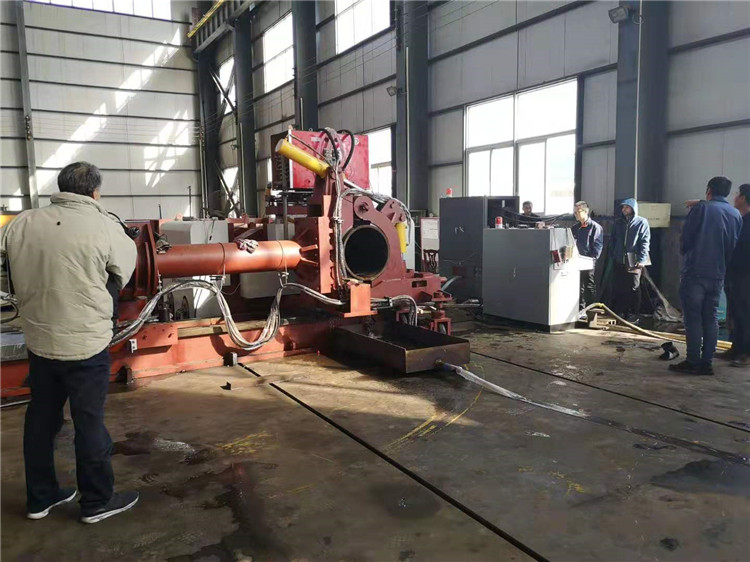

Our PLC Automatic Induction Bender has following advantages:
Main body is strength and durable.
Underframe welded with structural steel and steel plate, and machine milling. Pushing plate using T type groove structure, travel smoothly. Under the push board with grey iron plate, wear-resisting. Have wear compensation regulating variable.
Bending radius is adjusted by cycloidal motor drive screw rod adjustment, convenient adjustment, high precision.
Hydraulic system uses frequency control, working speed step-less variable speed, convenient adjustment, improve the production efficiency, saving energy save electricity. According to the feeding speed control motor speed, adjust the fuel delivery accordingly, on-demand oil supply, hydraulic oil without high pressure unloading, the oil temperature not too high.
Rocker arm uses the center boom structure, overcome the twist of rocker by bend moment, high bending precision, small rotating resistance, especially suitable for thin wall tube bending.
Medium frequency power supply adopts zero pressure start up mode, high success rate, high heating efficiency, low failure rate. Using control device, make power output stability: Input line voltage fluctuation ±15%, the system also can ensure constant power output.

Model		SH-610 (PLC automatic control)
Bending capacity	mm	Φ168,Φ219,Φ273,Φ323,Φ355,Φ406,Φ457,Φ508,Φ558,Φ610
Bending material		(1) carbon steel seamless pipe:20G, A106B, A106C etc. (2)The straight welding pipe: Q235B, 345B, X42, X52, X60, X70 and other materials; (3) Alloy steel:335P12, P22, P91, 12Cr1MoVG, WB36, etc.
Bending shapes		Round, Square, rectangle, channel steel, H-steel, T-steel, etc.
Bending radius	mm/D	2.5D≤ R≤6D
Bending angle	Degree	0-90°
Bending angle tolerance	Degree	±0.5°
Bending radius tolerance	mm	≤20
Anticipated reduction in wall thickness(from actual starting thickness)		≤10%
Max bending pipe length	mm	12000
Available moving distance of main cylinders	mm	6000mm
Bending speed	mm/minute	0-140mm/min
Pushing force	T	125TON
Machine dimension	Meter	L 15 xW5xH2.5
Running space required	Meter	L20xW8xH2.5
Machine Weight	T	Approx.50 Ton
