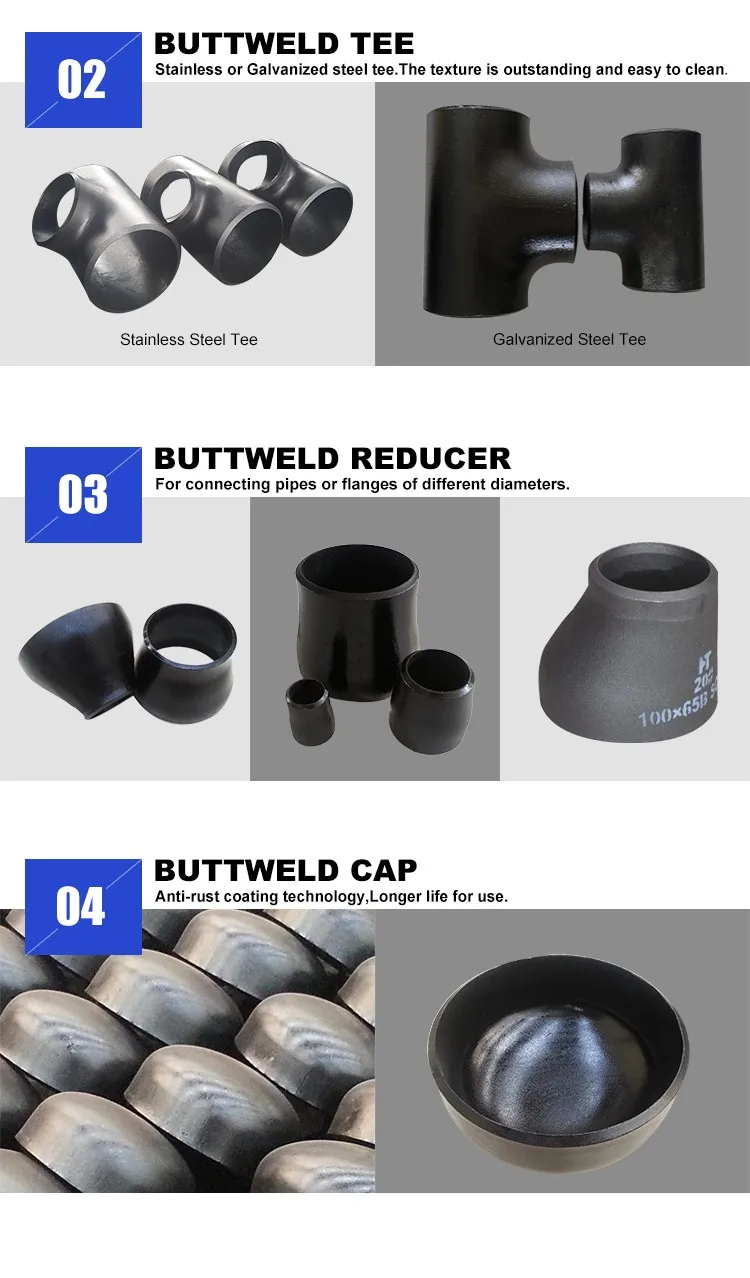

Carbon Steel Butt Weld Tee ASTM A234 Q235

Carbon Steel Butt Weld Tee ASTM A234 Q235

Outside Diameter: Seamless Pipe Tee ( 1/2″～24″), ERW-Welded-Fabricated Pipe Tee (1/2″～72″)

Types: Equal Tees, Reducing Tees

Wall Thickness: 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering

Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel

Manufacturing Standards – Pipe Tee

ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43

DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN: EN10253-1, EN10253-2

ASTM A403 – ASME SA403 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings

ASME B16.9 – Factory-Made Wrought Fittings Buttwelding

ASME B16.25 – Buttwelding Ends ASME B16.28 – ‘Wrought Steel Short Radius Elbows and Buttwelding Returns’

MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications

Pipe Tee Material Grades

Stainless Steel Tee; ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Carbon Steel Tee: ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Tee: ASTM A420 WPL3, A420 WPL6

Alloy Steel Tee: ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Duplex Steel Tee: ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462

Nickel Alloy Tee: ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )

Marking & Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All elbow fittings are marked with Grade, Lot No, Size, Degree and our trade mark. n special requests we can also, make custom marking on our products.

Quality Assurance

At Heiyan, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.
