Our Heiyan China Pipe Induction bending machine is designed for manufacturing the long radius(2.5D-6D) bend pipes with diameter from 1/2" to 28". These produced bend pipes are widely used in the connection of the industrial pipelines for the Petrochemical, Gas and Oil pipes, Electrical Power, Food, etc.
Main features
1. It is constructed with srtong metal fram with good appearance and stable functioning

2. It has individual power construction and electrical system, adopts two kinds of heating methods, high frequency and intermediate frequency, the speed of pushing could be randomly adjusted, the speed of adding raw material pipes is fast and the machine is easy to operate.

The China Pipe Induction bending machine is suitable for oil, natural gas, chemical, electric power, construction and other industries.

The bending machine principle adopt induction heating and hydraulic cylinder pushing.

The material of the pipe: carbon steel, alloy steel, stainless steel, etc.
It is used for hot bending of various round steel pipe or square steel pipes, angle iron, channel steel and I-beam.
Steel pipe diameter range.

Steel pipe wall thickness range.
The bending radius is generally 2.5D--6D. Any large radius can be bend according to customer needs. Also can produce steel pipes with multiple curvature radius.
The bending angle is generally 0-90° or 0-180°

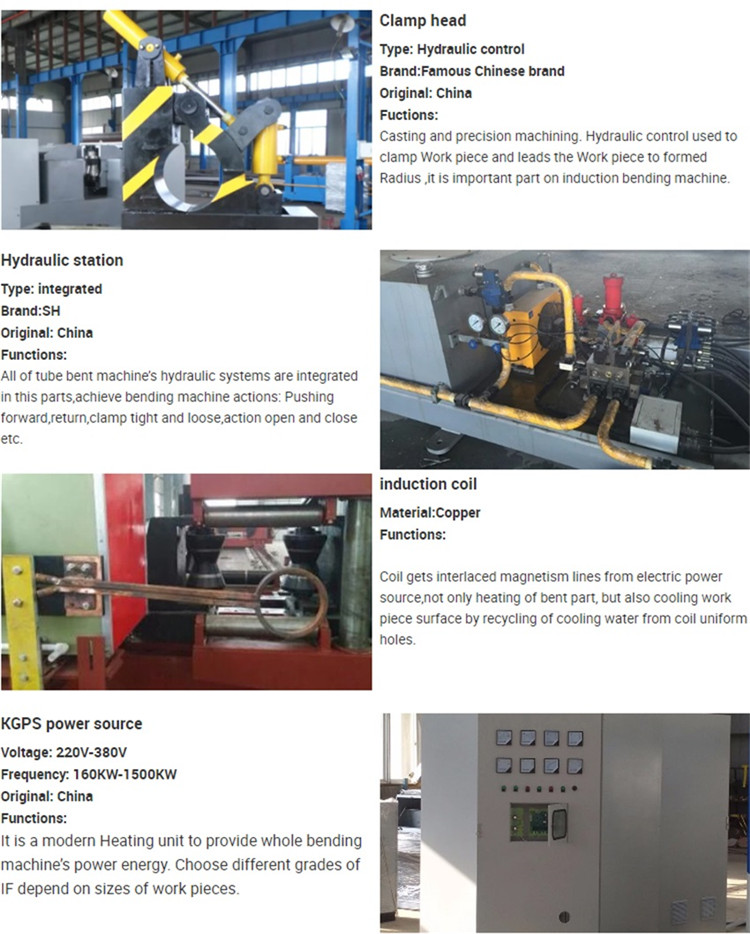

Equipment structure

Induction heating power supply part including induction heating power supply, cooling water circulation system, operation cabinet (touch screen, PLC control system).

Hydraulic system: oil tank, pump station, hydraulic cylinder, oil pipe.

Mechanical body: hydraulic cylinder support , push plate, Chassis, platform, transformer support, slide rail, rocker spindle, clamp, etc.
Induction bending of pipe and tube machine advantage.jpg
