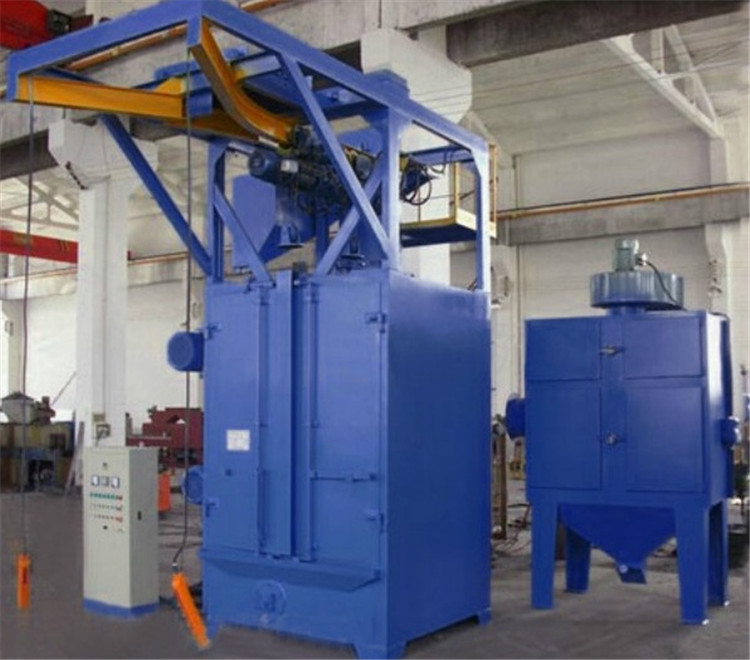

Hanger Hook Double Hook Type Shot Blasting Machine
Technical parameters:
|
Type |
326 |
3210 |
3210 |
|
Productivity(kg/h) |
600-1200 |
2500-3500 |
3000-5000 |
|
Feeding amount(kg) |
200 |
600 |
600 |
|
Maximum weight of single piece(kg) |
15 |
30 |
30 |
|
Diameter of end disk(Mn) |
650 |
1000 |
1000 |
|
Effective volume(M) |
0.33 |
1.05 |
1.05 |
|
Abrasive flow(kg/min) |
200 |
250 |
250 |
|
Ventilation capacity(M 3/h) |
2500 |
3500 |
4000 |
|
Power consumption(kw) |
13.47 |
25.05 |
31.65 |
|
Overall dimensions(mm) |
3200X1520X3715 |
4290X1900X4500 |
5850X1950X4600 |
Hanger Hook Double Hook Type Shot Blasting Machine Technical Parameters:
1. The Medium Small size work pieces Shot Blasting Machinecan be equiped with steel or rubber belt conveyor according to the requirements.
2. The single weight of the work piece should be less than 150kg and not friable.

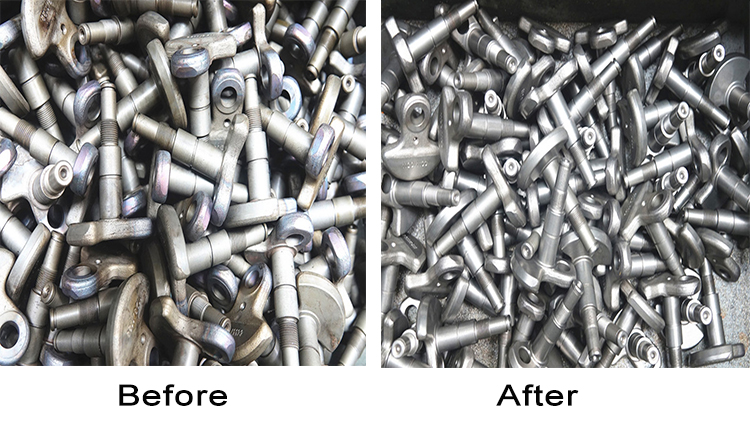

3. It provides a cost-effective solution for batch cleaning, deburring, descaling, decoring, deflashing and peening of castings, forgings and heat treated parts.
4. It can be used separated or in lines.
