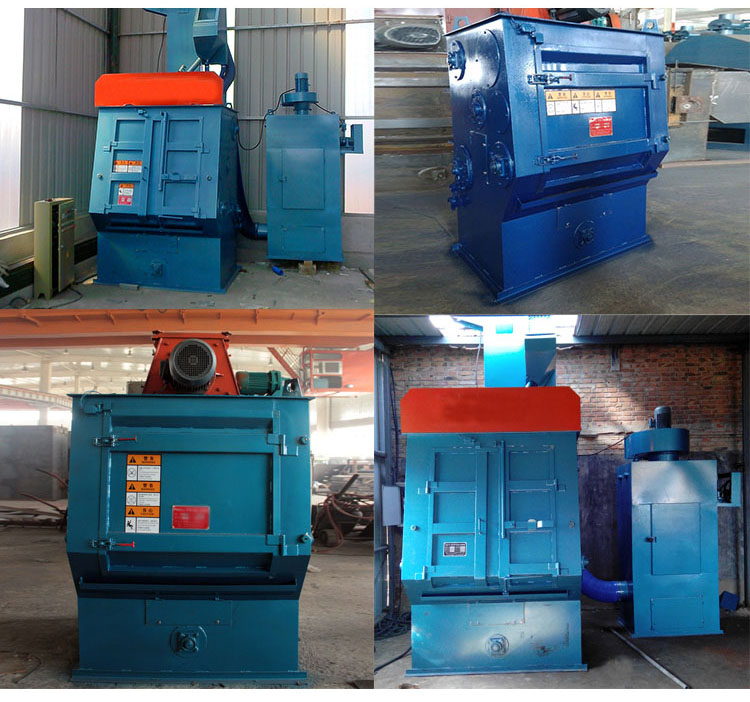

Medium Small size work pieces Shot Blasting Machine

Medium Small size work pieces Shot Blasting Machine

Paraneter	326	3210	3210
Productivity(T/h)	0.6-1.2	3.5	1.5-2.5
Loading weight(kg)	200	800	600
The maximun weight(kg)	10	30	30
Diameter of roller(mm)	650	1000	1000
Available capacity(m3)	0.15	0.4	0.3
Pill impelling volume(kg/min)	125	360	250
Dedusting air volume(m3/h)	2200	6000	5000
Power dissipation(kw)	12.6	32.6	24.3
Appearance dimension(mm)	3200*1520*3500	4290*1900*4500	5850*1950*4600

Technical Parameters:

1. The Medium Small size work pieces Shot Blasting Machinecan be equiped with steel or rubber belt conveyor according to the requirements.

2. The single weight of the work piece should be less than 150kg and not friable.

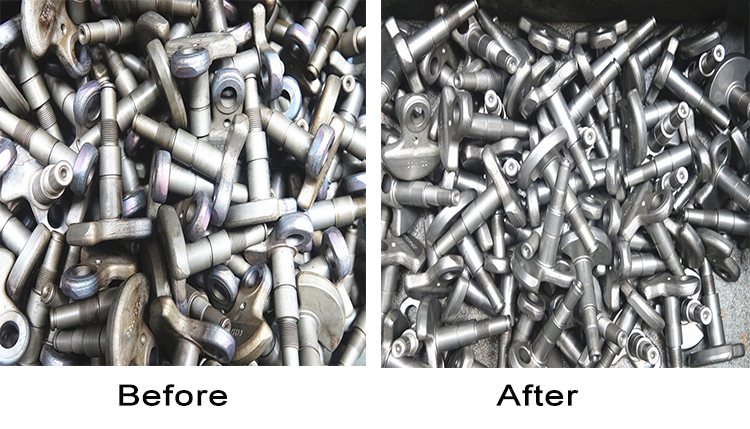

3. It provides a cost-effective solution for batch cleaning, deburring, descaling, decoring, deflashing and peening of castings, forgings and heat treated parts.

4. It can be used separated or in lines.
