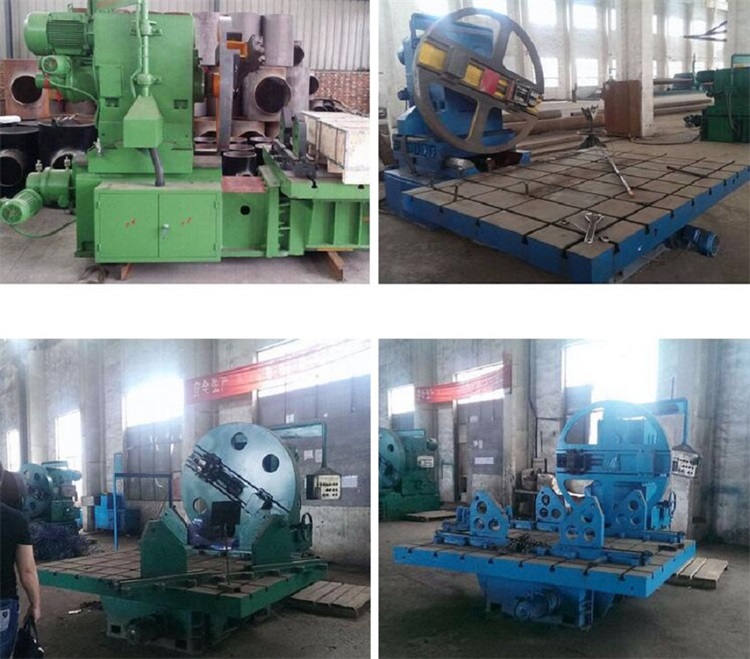

Q1280-I And II Electric Beveller China Beveling Machine
Electric pipe elbow beveling machine
Machine function:
¡¡¡¡ Q1280-I and II Electric Beveller is to learn the advantages of various pipe beveling machine design and production needs of each user, ¢ñ type suitable diameter ¦Õ325-¦Õ630 mm, ¢ò apply ¦Õ530-¦Õ800 mm diameter elbow rotation, other specifications (¦Õ159-¦Õ820) can U-turn machining. Applicable to the elbow, tee beveling pipe wall thickness of 10-150 mm. Electric longitudinal feed fast and work into two kinds of speed, two-speed or reverse individually or simultaneously work together. Adjustable platform lift, pipe fittings for the convenient operation quick U-turn rotation, the effectiveness fast. Prior to use, according to the machining diameter of the object and choose the clamp form a corresponding adjustment to the position of the clamp holder. According to the wall thickness of the pipe machining choice machining turret, turret tool and adjust the corresponding position. Select the cutting speed and feed processing methods according to the diameter and wall thickness of the pipe. When the pipe wall thickness less than 12 mm, can be cut forming a processing method for processing.
¡¡¡¡This machine is the key equipment before the end of the pipe welded pipe beveling, the machine has a powerful force and the operation is convenient and flexible, and durable.
Main technical parameter:
1¡¢Motor power£ºN=7.5KW,n=960rpm
2¡¢Cutterhead speed£º 31¡¢59¡¢86¡¢161rpm 4positions
3¡¢Processing range£º¢ñ Pipe diameter 325- 630mm Pipe wall thickness 10-150mm ¢òÐÍ Pipe diameter 530-800mm Pipe wall thickness 10-150mm
4¡¢Angle kinfe frame regulation range£ºBetween 0-37.5
5¡¢Cross travel£º520mm
6¡¢Axial fast feed rate£º¡À302mm/min Electric
7¡¢Fixture working platform£º¢ñ 1100x1100mm ¢ò 1400x1400mm
8¡¢Groove forms can be processed:Single V, double V, U form the slope
9¡¢Cutter diameter£º¢ñ D=850mm ¢ò D=1010mm
10¡¢Machine Center High£ºH=1125mm
The Elbow beveling machine has the features of unique design,compact structure,beautiful look and convinent to operate.It is ideal equipment for chamfering metal right angle elbow end.The products processed by the machine are complying with relavant elbow beveling standard.
Elbow beveling machine can be used for treatment of pipes material:carbon steel,stainless steel and alloys.Cold cutting process will not influence the quality of the material of the pipe.The machine is safe,convenient and widely-used,and it is a ideal pipe end beveling processing equipment
