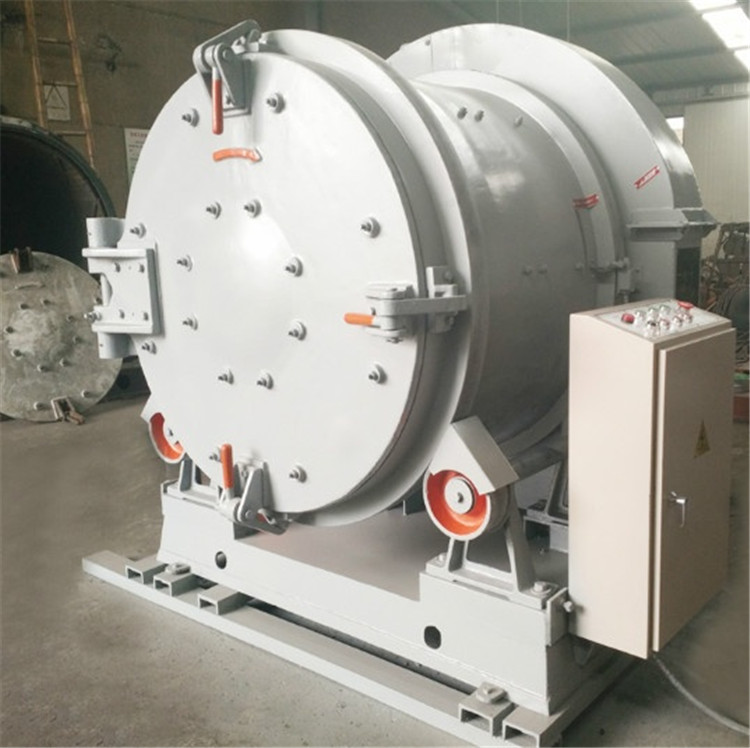

Q3113 Metal Rotary Drum Shot Blasting Machine

Q3113 Metal Rotary Drum Shot Blasting Machine

Technical parameters:

Q3113 Metal Rotary Drum Shot Blasting Machine Application Possibilities

- Suit for small to middle size parts that is not damageable.

- Removal of moulding sand, burrs, mill, forge scale and rust.

- Be recommended for the treatment of small batch parts which can be tumbled in bulk loads.

Q3113 Metal Rotary Drum Shot Blasting Machine Advantage

- Compact structure, installation without foundation pit.

- Simple designed, maximum uptime and minimum maintenance costs.

- Easy access and replacement of wear parts for simple and efficient maintenance.

Q3113 Metal Rotary Drum Shot Blasting Machine Technical Data

           Dedusting Air Volume                 m3/h          1000              2000              2000             2800           1800

Q3113 Metal Rotary Drum Shot Blasting Machine  Introduction:

The machine is suitable for surface rust removal of work pieces in medium or small quantity batch production with many varieties. Put the work pieces into the barrel and blasting it in side way.

The high-speed impeller throws the abrasive to the continuous tumbling castings or forgings in barrel, to remove the greensand or scales on the surface. It cleans evenly and its productivity is high, so it is suitable for cleaning the small work pieces whose weight are under 15g in medium or small-scale casting or forging workshops.

Q3113 Metal Rotary Drum Shot Blasting Machine Work process
Put the cleaning work piece into the barrel and close the end-cover, and then adjust the cleaning time. First, move the semi-nut needle to the desired position, and then start the machine in turn.
After the barrel rotating, the helical ribs on the protecting board tumble the castings continuously, to make each surface cleaned evenly. Through the hole , the abrasive flows into the middle-wall, then through the screw belt conveying to the box-shaped frame , via elevator carrying to the top of the separator. Screen such big core-sand and burrs, etc, the small sand, dust and abrasive are carried away by the airflow. The integrity shot flows into the blast wheels for continuous usage.

Q3113 Metal Rotary Drum Shot Blasting Machine Technical Parameters:

1. The Medium Small size work pieces Shot Blasting Machinecan be equiped with steel or rubber belt conveyor according to the requirements.

2. The single weight of the work piece should be less than 150kg and not friable.

3. It provides a cost-effective solution for batch cleaning, deburring, descaling, decoring, deflashing and peening of castings, forgings and heat treated parts.

4. It can be used separated or in lines.
