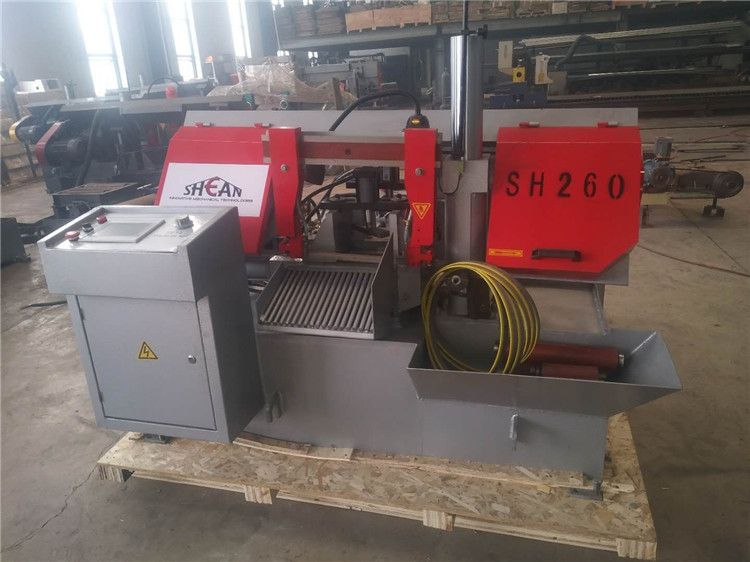

Russia SH260 SH300 CNC Full automatic Angle Band sawing machine
Our 260 Band saw machine is the hot seller type in Russia
| Type | SH-330 | SH280 | SH400 | G400 | GZ4235 | BS712 |
| Cut capcity W*H (mm) | Rou. 330 | Rou. 280 | Rou. 400 |
90 ˇăRou. 400 ˇ§500*400 |
Rou. 350 |
90 ˇă Rou. 178 ˇ§178*305 |
| Rec. 330*330 | Rec. 280*330 | Rec. 400*450 |
P/N 45ˇă Rou.250 ˇ§250*300 |
Rec. 350*350 |
P/N 45ˇă Rou.127ˇ§ 120*125 |
|
| Bundle cutting W*H (mm) | Max.280*100 | Max.200*90 | Max. 320*180 | |||
| Min.200*20 | Min.100*20 | Min. 200*20 | ||||
| Saw belt size(mm) | 4115*34*1.1 | 3505*27*0.9 | 4880*41*1.3 | 4800*34*1.1 | 4115*34*1.1 | 19*0.9*2362mm |
| belt line speed(m/min) | 40/60/80 | 40/60/80 |
15-80 frequency control |
40/60/80 cone pulley |
40/60/80 cone pulley |
22 ,34,49,64MPM |
| Main generator power(kw) | 3 | 2.2 | 4 | 4 | 3 |
750W 1HP(3HP) 1.1KW 1.5HP (1PH) |
| Hydraulic Gen. power(kw) | 1.5 | 0.75 | 1.5 | 0.75 | 0.75 | |
| Cooling Gen. power (kw) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | |
| Working clamp style | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Saw belt tighten style | Hand | Hand | Hydraulic | Hand | Hand | Hand |
| Main trasmit structure | Turbine | Turbine | Turbine | Turbine | Turbine | V-belt |
| Loading style | Extra roller | Extra roller | Extra roller | Roller feeding | Roller feeding | |
| Working table height (mm) | 650 | 650 | 650 | 650 | 650 | 300 |
| Weights of machine (kgs) | 1960 | 1600 | 2300 | 1500 | 1100 | 145 /178 kg |
| Packing Dim.(mm) L*M*H | 1900*2300*1500 | 1750*2200*1450 | 2200*2700*1750 | 2000*1200*1500 | 1950*1300*1500 |
125*51*115 cm |
