Name of Product

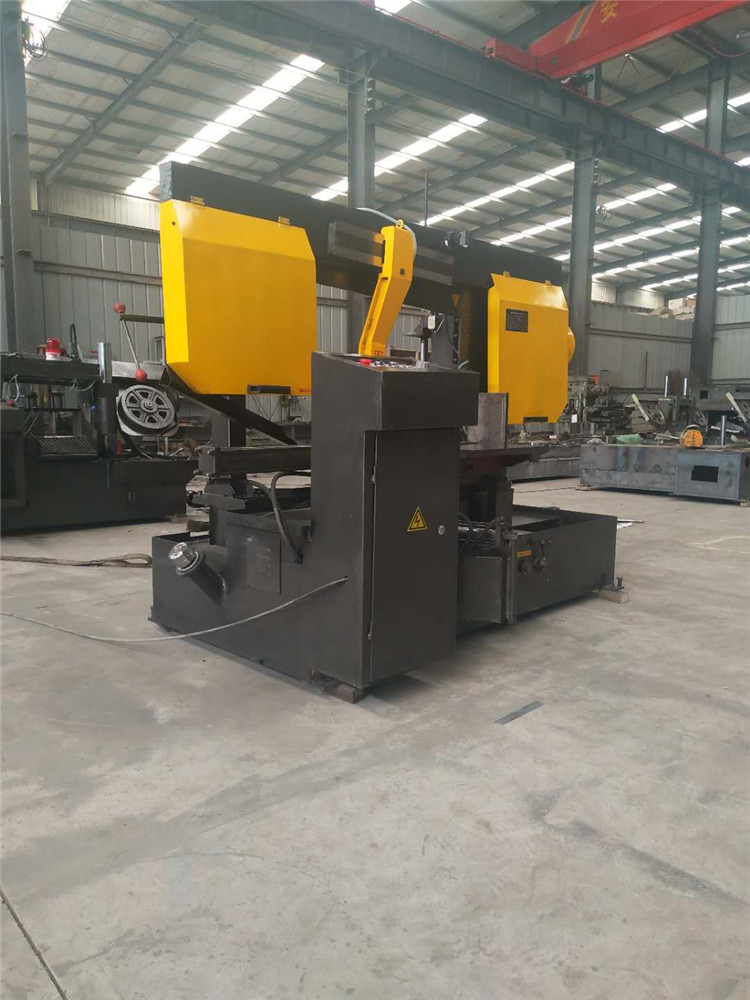

Miter cutting bandsaws

Model

G-400(semi automatic)

Cutting Capacity

At 90°

Round 400mm , rectangle 400*450mm

At 45°

Round 450mm , rectangle 400*400mm

Blade Size

4570×34×1.1mm

Working theory

Hydraulic and semi-automatically

Machine upper frame lifting over material

Hydraulically and speed adjustable.

Sawing speed control method

Frequency controlled

Material feeding

motordriven roller trolley included easy operation

Material Trolley

Portable material trolley wither roller

Cutting Length Control

Controlled by the length guage

Power supply

380v,50hz

Main Motor Rate

4.0kw

Oil Pump motor rate

0.75kw

Coolant Pump rate

0.09kw

Name of Product		Miter cutting bandsaws
Model		G-400(semi automatic)
Cutting Capacity	At 90°	Round 400mm , rectangle 400*450mm
	At 45°	Round 450mm , rectangle 400*400mm
Blade Size		4570×34×1.1mm
Working theory		Hydraulic and semi-automatically
Machine upper frame lifting over material		Hydraulically and speed adjustable.
Sawing speed control method		Frequency controlled
Material feeding		motordriven roller trolley included easy operation
Material Trolley		Portable material trolley wither roller
Cutting Length Control		Controlled by the length guage
Power supply		380v,50hz
Main Motor Rate		4.0kw
Oil Pump motor rate		0.75kw
Coolant Pump rate		0.09kw
